LST-5VDC
Features
Optical Power Handling: 2 W
Aperture: 3 mm
Switching Speed: 2 ms
Direct Drive: 5V DC
No Controller PCB Needed
Optical Power Handling: 2 W
Aperture: 3 mm
Switching Speed: 2 ms
Direct Drive: 5V DC
No Controller PCB Needed
$395.00
LST-5VDC Optical Shutter
ApplicationsOptical Shutter
Laser Safety Shutter
High Speed 50 Hz
Low Power Draw
Compact Package
Optical Specifications
| Aperture Diameter | 3.0 mm |
| Typical Beam Diameter | 1.0 mm |
| Max. Optical Power Handling | 2 W |
| Laser Induced Damage Threshold | 30 mJ/cm2 @ 10 ns |
Performance Specifications
| Open Delay Time | 3.0 ms |
| Open Rise Time | 2.0 ms |
| Open Total Time | 5.0 ms |
| Close Delay Time | 1.5 ms |
| Close Fall Time | 2.0 ms |
| Close Total Time | 3.5 ms |
| Min. FWHM Exposure | 10 ms |
| Max. Shutter Repetition Rate | 50 Hz (Continuous) |
Thermal Specifications
| Thermal Power Dissipation Holding Open | 2.5 WATTS |
| Thermal Power Dissipation at 50 Hz | 1.2 WATTS |
| Mounting Surface | Datum A or Datum B |
Electrical Drive
| Electrical Drive | Direct Drive 5 V at 500 mA |
| Nominal Magnetic Impedence | 10 ohms |
| Cable/Wire Type, No. and Length | 26 g Teflon, 2 leads, 18 in. twisted pair |
| Cable/Wire Termination | Flying |
Custom Options
| Aperture | 4.0 mm |
| Direct Drive | 12 V at 200 mA |
| Optics Options | 5 W Gold/Aluminum Optics |
| Higher LIDT | 300 mJ/cm2 at 10 ns |
Attributes
| Dimensions | 2 in. x 1 in. x 0.4 in. |
| Classification | Optical/Process |
| Specifications Date | March 13, 2024 |
Description
The high reliability LST-5VDC optical shutter provides the best value with 5V direct drive. Its compact 2” x 1” x 0.4” package size with 3mm aperture provides the optimum package to aperture size ratio. The electrical drive becomes the simplest form for users with 5V direct drive. Lowest cost electrical drive, a switch, is achieved. Thermal management becomes negligible with only 2.5W thermal power dissipation when holding open.
Considerations for all laser shutters and optical shutters include proximity to high magnetic fields and strict observance of optical power rating. Subjecting the optical shutter to “large” size dust particles and debris could inhibit the optical shutter motion.

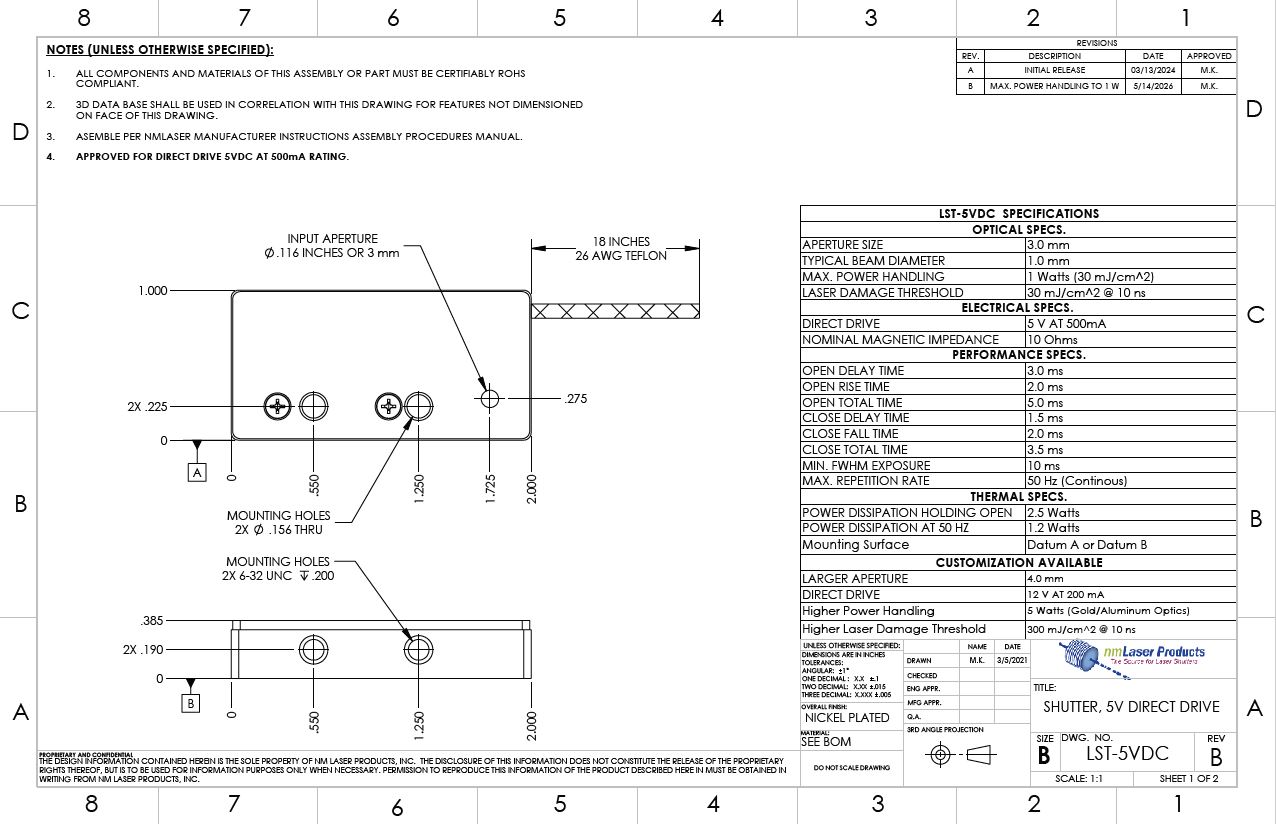

See the Mechanical Drawing for dimensions. Also see the Application Notes in the Technical Information menu for important operational issues including: thermal mounting, user-built circuits, polarization, lifetime, jitter, vacuum operation, and contamination. See the Product Matrix page to compare laser shutter models.

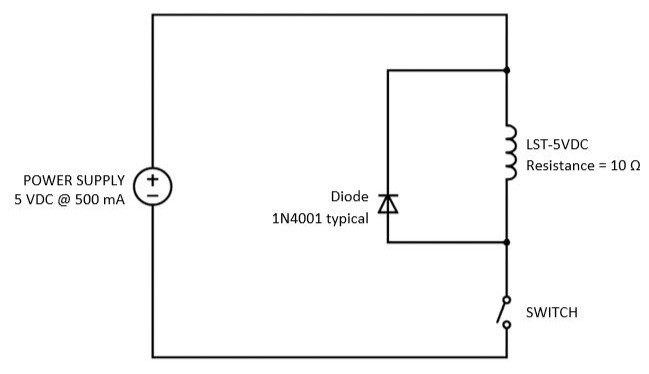

SIMPLE 5V DIRECT DRIVE
