STANDARD AND CUSTOM PRODUCTS BASED ON YOUR REQUIREMENTS

NM Laser’s high LIDT and high-irradiance laser shutters are built to meet our customers’ demanding applications. Our products are durable and field-proven for 24/7 active and continuous operation. The patented flexure technology in our laser shutters and optical shutters provides features not found in other types of mechanical shutters.

We offer a broad-based line of standard and custom laser shutters with the highest reliability to meet the requirements of most laser applications. Models are available for all commercial lasers. Our electro-mechanical laser shutters are available up to 500 Hz repetition rate and 5 kW optical power handling.

We also offer optical shutters designed with low light leakage from the aperture. Our optical shutter technology is focused on reliability (billions of cycles), the highest available in the market. Optical shutters can be customized with single or dual blades. Other performance parameters achieved are low vibration with electrical and mechanical damping, position sensors, and low electrical power dissipation.

Contact our engineering team for consultation and technical support on standard and customized OEM applications.

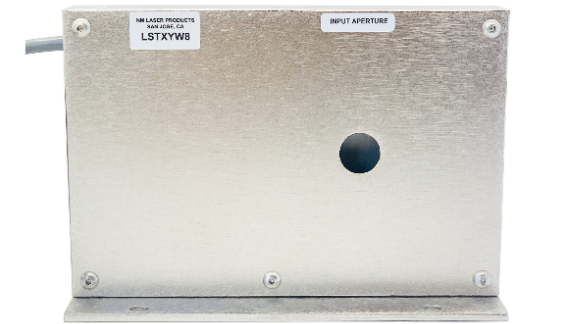

LSTXYW8LSTXYW8$1195

Features
Optical Power: up to 300 W
Aperture: 14 mm
Switching Speed: 40 ms
Position Sensors Standard
Optics: Dielectric
Applications
Pulsed 15 J/cm2
Joule Level Pulses/Gating
Laser Safety Interlock
Multi-line Lasers

LST400LST400$695

Features
Optical Power: up to 50 W
Aperture: 8 & 10 mm
Switching Speed: 20 ms
Logic Position Sensors
Optics: Metal & Dielectric
Applications
Safety Interlock
Slow Processing
Diverging Beams
Tight Zones

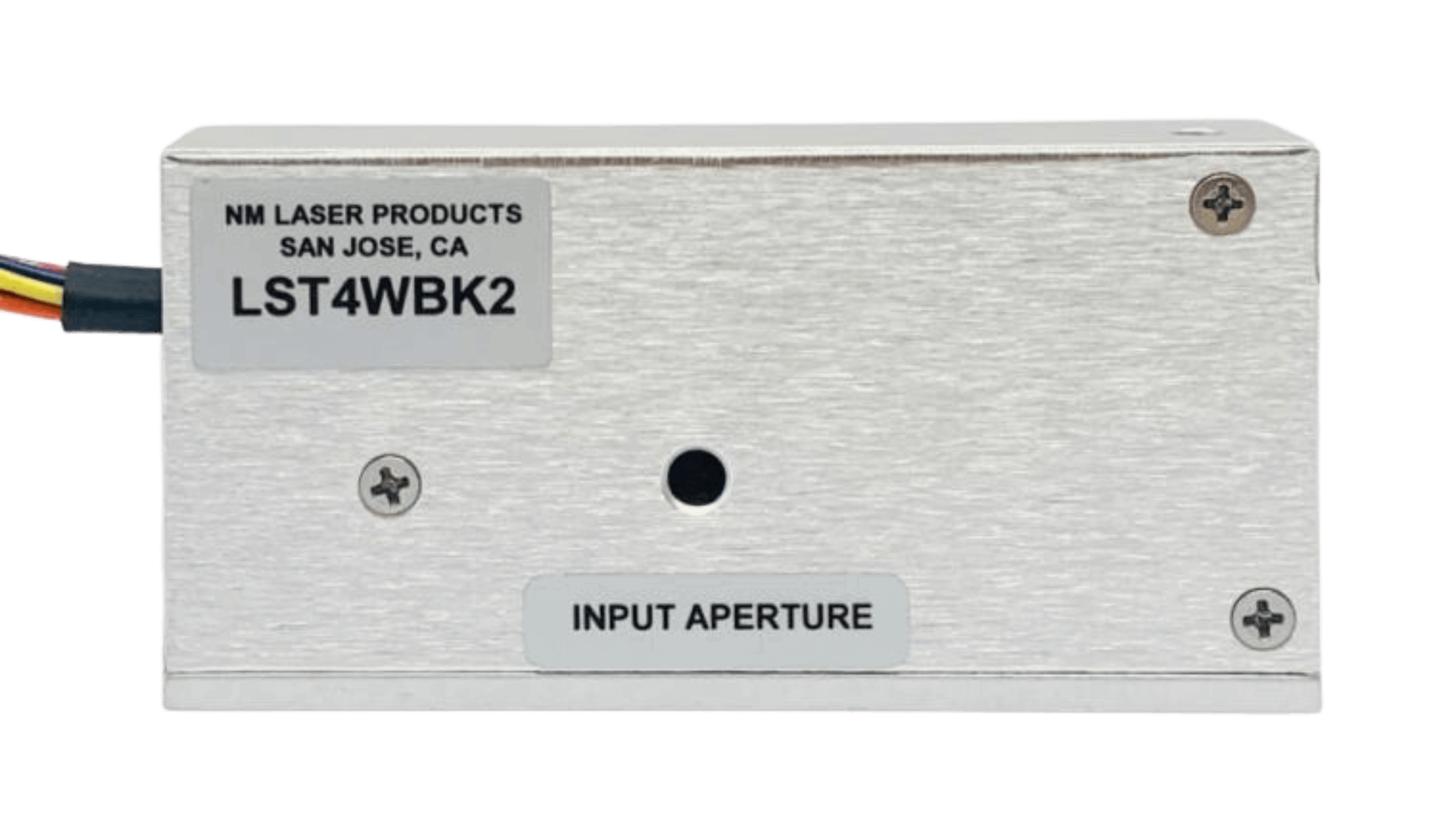

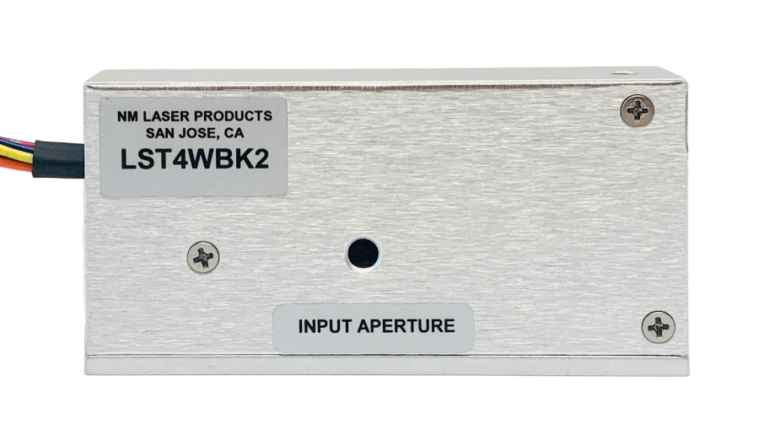

LST4WBKLST4WBK2$695

Features
Optical Power: up to 50 W
Aperture: 4 mm
Switching Speed: 10 ms
Logic Position Sensors
Optics: Metal & Dielectric
Applications
OEM Safety
High Rep Rate DPSS
Thin Working Zones
Small Package

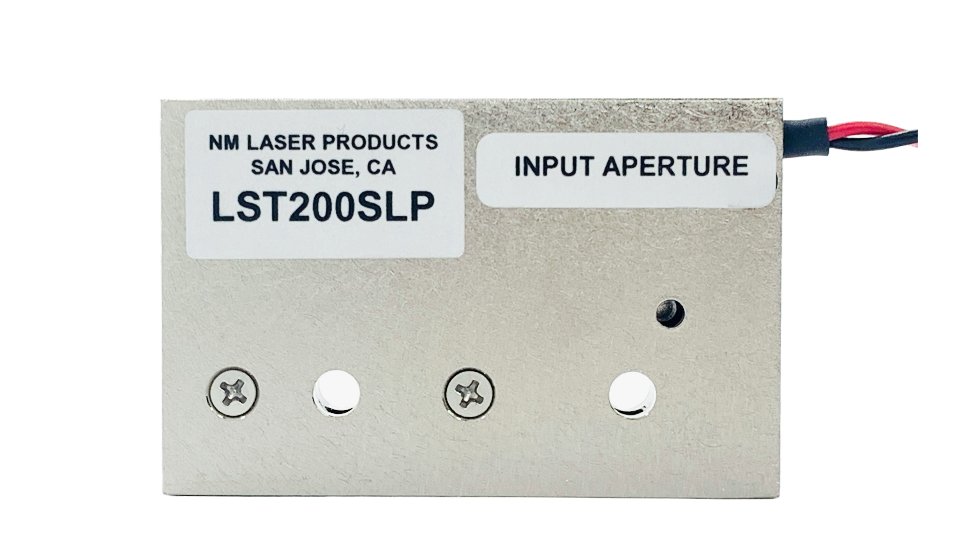

LST200SLPLST200SLP$495

Features
Optical Power Handling: 2 W
Aperture: 2.3 or 3 mm Option
Switching Speed: 1 ms
Lifetime: 106 Cycles
Applications
Optical Shutter
High-Speed Processing
Highest Reliability
Biotech Exposures

LST200-F40LST200-F40Contact for pricing

Features
Optical Power Handling: 6 W
Aperture: 4 mm
Switching Speed: 8 ms
Position Sensors
Optics: Broadband
Applications
Optical Shutter
Biotech Exposures
500 Million Cycles
OEM Requiring Speed

LST-5VDCLST-5VDC$295

Features
Direct Drive: 5VDC or 3.3VDC
No Controller PCB Needed
Optical Power Handling: 2 W
Aperture: 3 mm
Switching Time: 2 ms
Applications
Optical Shutter
High-Speed 50 Hz
Safety Shutter
Low Power Draw

LST218LST218$525

Features
12 VDC Direct Drive
Optical Power: 1 W
Aperture Size: 3 mm
Switching Speed: 10 ms
Applications
Optical Shutter
High Rep Rate DPSS
OEM Safety
Small Package

CX4000BCX4000B$495

Features
Fastest Switching Speeds
Lifetime Reliability
High Peak Currents
Analog/Digital Modes
Programmable Parameters
Applications
OEM Integrations
Rapid Prototyping
R&D
Education
